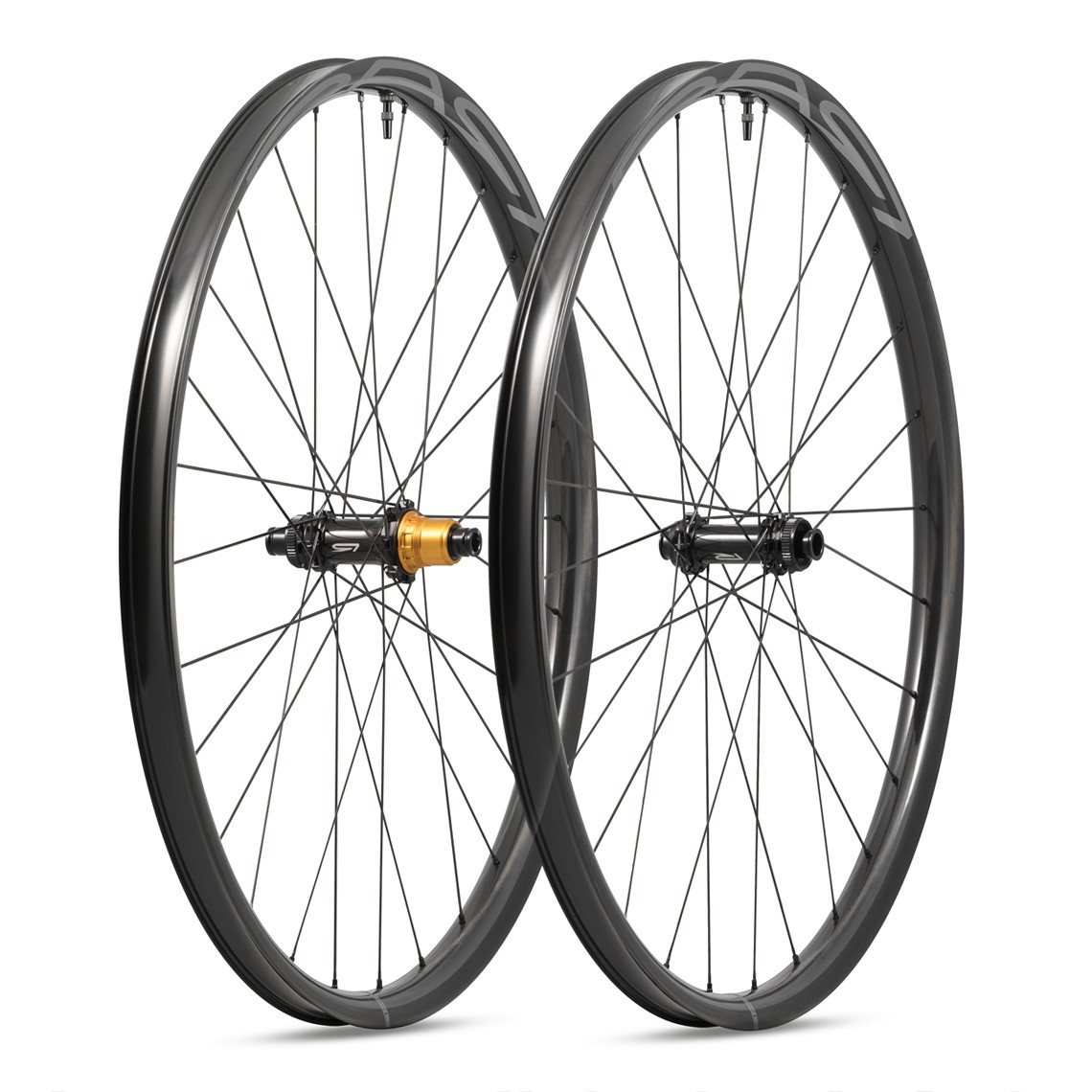

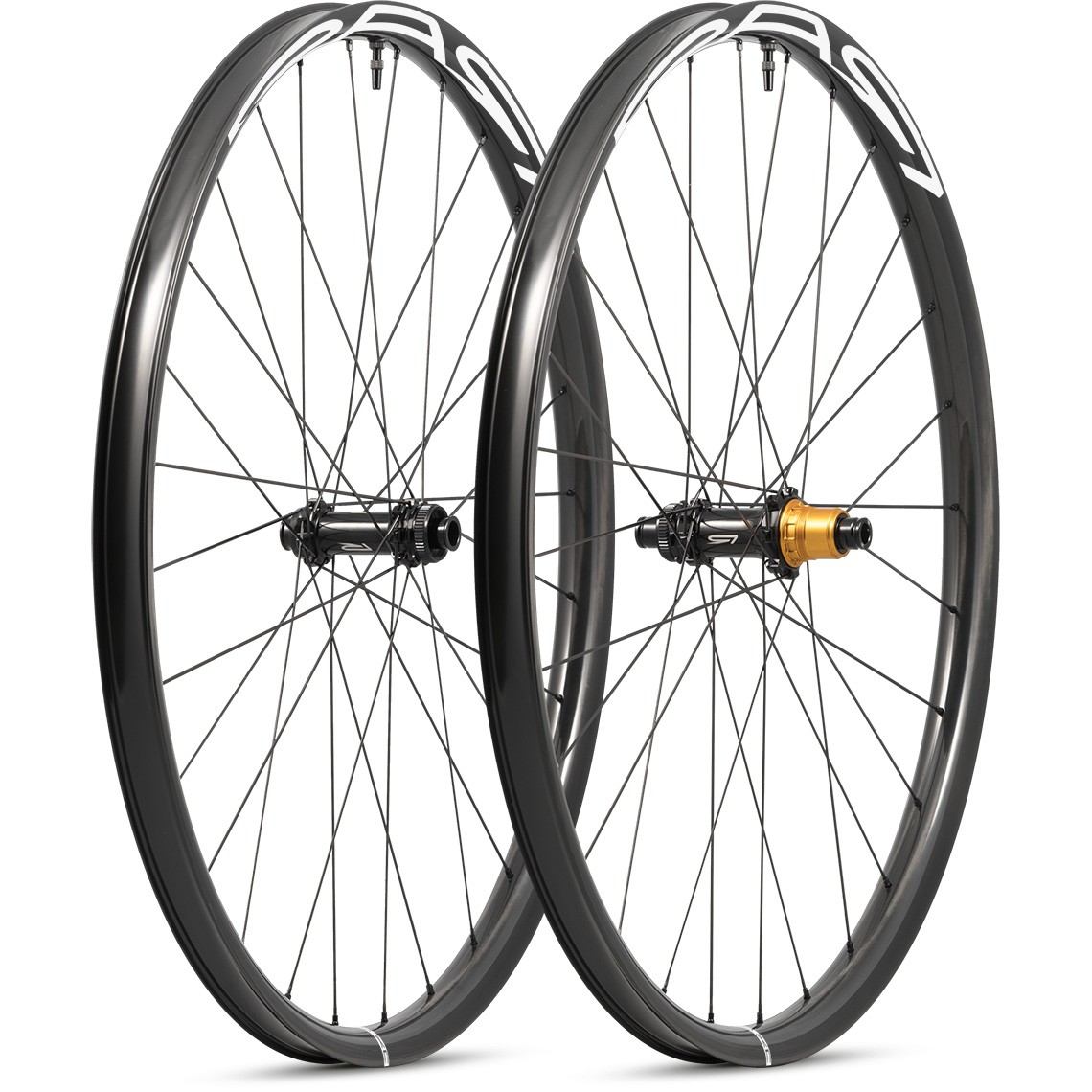

/ EVEN XC29 - carbon

New product

Its dynamical properties are excellent. EVEN XC29 is a very light and precise wheelset with an internal width of 30mm giving the best performance.

More details

XC
AM
EX
DH

1 165,83 €






Data sheet

Rim depth : 23mm
External rim width : 35mm
Internal rim width (tubeless/clincher): 30mm
Weight / set - RAR FIRST hubs (g) 1470
Asymmetry: 3
Front wheel hub : RAR
Rear wheel hub : RAR
Spokes : 28 x Sapim Cx-ray
Warranty : 5 years
Weight limit (rider+bike): 100kg Contact us for bespoke ABSOLUTE wheels if you exceed this limit or if you prefer super stiff wheels. We will beef them up with different parts and higher spoke count.

More info

COLOR CHART

Let us know which color better suits your bike in the commentary section at step 3 of the ordering process.



NUANCIER RAR





Example logo CHROME-MIRROR

RAR EVEN 50-MAGNUM 60



Example logo RETROREFLECTIVE black

RAR EXALT40 - retroreflechissant noir



NIPPLE TINT

Beyond these colors, we can lace your wheels with customized coloured nipples.

Have a look !

RAR ecrous

From left to right:

BLACK - GREY - SILVER - GOLD - ORANGE - COPPER - RED - PURPLE - MARINE BLUE - TORQUOISE - GREEN



Example purple nipple + black mat logo + painted Crystal blue spokes

RAR ecrous violet

OPTIONS UPCHARGE:

Logo color: coated or mat is free of charge. For other colors, please refer to the option menu top right of this page.

Nipple color: free of charge.

Paint for spokes / rims / hubs: please refer to this page: https://www.roues-rar.fr/en/852-paint-options.html





RAR EVEN - RAR MAGNUM

After its successful launch at the 2011 Paris Cycle Show, our EVEN range built up an exceptional reputation. Originally distributed exclusively in 50mm tubulars, the segment now includes complementary profiles such as 24mm road discs, XC29s, GX35s and 40mm rim brake.

These excellent wheels ensure astonishing performances with a whole control of the costs, while maintaining RAR's strength: the expert rigour of handmade assembly in our premises.

RAR EVEN 50 DISQUE chrome miroir

We got a solid confirmation of the strength and relevancy of these profiles all along the million hours the wheels were ridden by pro riders, high end amateurs or even recreationnal cyclists. The millions of spokes assembled by hand on these EVEN and MAGNUM wheels brought a really strong knowledge.
Every single wheel is followed up from the first composite cloth to the last tie or decal.

Combined with our experience, this traceability makes the 5-year guarantee possible.

Regarding the construction point of view, the rims have a hollow structure. Its manufacturing bladder is taken out at the end of the moulding process, for obtaining a rim that is as clean on the inside as it is on the outside. Above all, this construction ensures that the entire mass corresponds to carbon and its resin under pressure. The ratio of mass to strength to performance is logically superior to foam sandwich constructions.

RAR EVEN AM29



We use the Toray T700 and T800 carbon cloth in a pre-impregnated form, both in 3K and UD. The layup is designed to reach the best combination of stiffness modulus, tensile strength and, above all, the ease of fabrication is the best. The UD fibres mainly structure the interior: they provide control over the mechanical specifications. We place the crossed fabrics on the sensitive areas of friction, impact or multi-axis traction.

Actually, the EVEN range is divided into rims for disc braking and those for rim braking. For the first one, the fabrics are pre-impregnated with standard glass transition temperature resin. The latter are made with ultra-high temperature resins, which also require a post-cure, to maintain a high mechanical resistance even after long braking.

RAR MAGNUM 60-90



We prioritise safety and high performance by incorporating into the rim the dynamical balance as a standard. The layup takes into account the mass of the tyre's valve to balance its rotation. The result is an excellent feeling at any speed.

RAR EVEN 40 cut



RAR jantes tubeless

Designed for tubeless tires and standard air tubes:
- Fast and easy tyre fit
- Secured sealing



RAR résines hautes températures

Rim brake rims with high temperature resin:
- reliability / security
- strong and progressive braking performances



RAR jante asymétrique

Asymmetrical rims:
- enhanced right to left spoke tension ratio
- increase in the endurance and dynamical properties



RAR équilibre dynamique de la roue

Dynamic wheel balancing:
- high speed security
- high performance and good feeling



VERSIONS

24 DISC BRAKE 40 DISC BRAKE 50 DISC BRAKE 60 DISC BRAKE 80 DISC BRAKE

Height:

Internal width:

Weight:



Drillings:

Asymetrical:

24mm

21mm

330g (T)

375g (C)

24, 28

2mm

40mm

21mm

350g (T)

395g (C)

24, 28

2mm

50mm

22mm

395g (T)

440g (C)

24, 28

2mm

60mm

22mm

450g (T)

490g (C)

24

2mm

80mm

22mm

600g (T)

650g (C)

24

2mm

RAR EVEN 24 DISQUE

RAR EVEN 40 DISQUE

RAR EVEN 50 DISQUE

RAR MAGNUM 60 DISQUE

RAR MAGNUM 80 DISQUE



XC29 AM29 GX35 GX40

Height:

Internal width:

Weight:

Drillings:

Asymetrical:

23mm

30,5mm

390g

28, 32

2,5mm

25mm

30mm

450g

32

2,5mm

35mm

25mm

350g

24, 28

2,5mm

40mm

24mm

390g

24

2,5mm

RAR EVEN XC29

RAR EVEN XC29

RAR EVEN GX35

RAR EVEN GX40





40 TUBELESS RIM BRAKE 40 TUBULAR RIM BRAKE 50 TUBELESS RIM BRAKE 50 TUBULAR RIM BRAKE

Height:

Internal width:

Weight:

Drillings:

40mm

19mm

450g

20, 24, 28

40mm

-

350g

20, 24

50mm

19mm

490g

20, 24, 28

50mm

-

390g

20, 24

RAR EVEN 38P ARRAR EVEN 38P AV

RAR EVEN 38B ARRAR EVEN 38B AV

RAR EVEN 50
